起源の場所:
上海、中国
ブランド名:
Maneurop
証明:
CE
モデル番号:
MT100

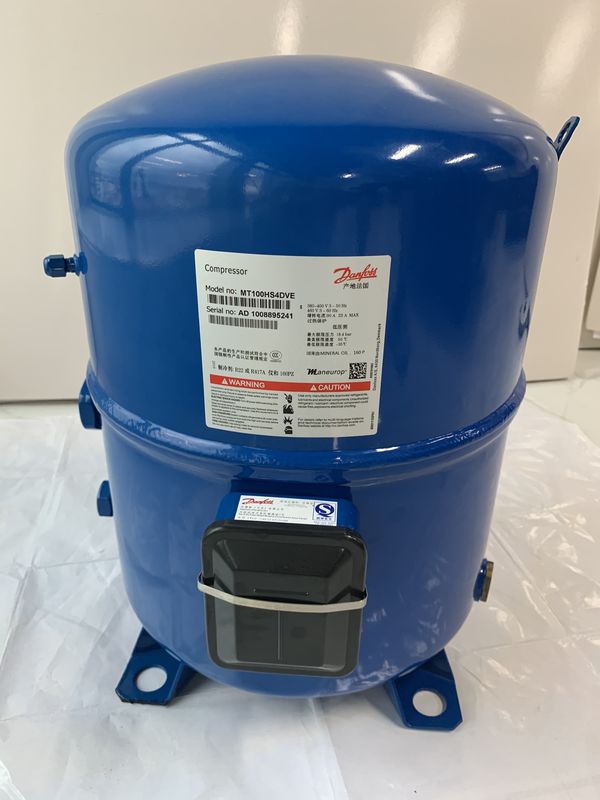

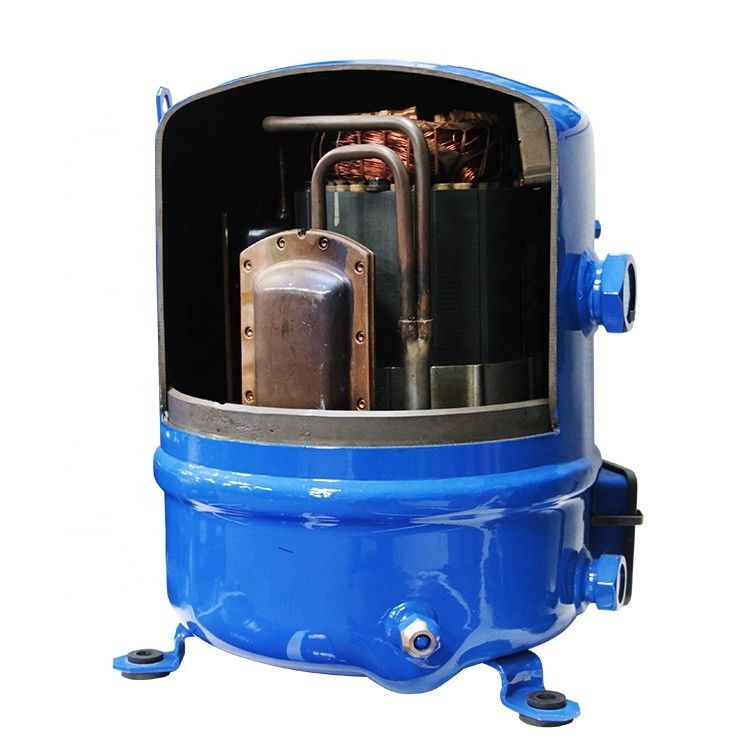

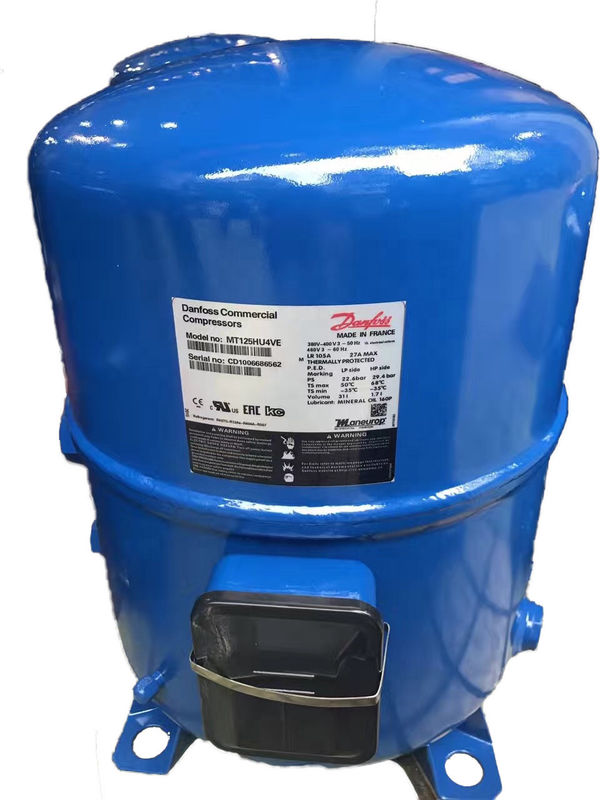

MT100馬力danfossの商業圧縮機の密閉エアコンの圧縮機R22の冷凍の圧縮機
主な特長
1）簡単なアセンブリ構造、容易な取付けおよび維持。
2）は空気の部品、電気部品および作動の部品で世界的に有名なブランドの部品を使用される進めた。
3）高エネルギーの効率、耐久の生命および低雑音。
4） 1年の質の保証。
5）全面的な売出価格、完全な質。
プロダクト細部
| MT100-4.冷却容量[kW] | ||||||||||||
| Tc/Te | -25.0 | -20.0 | -15.0 | -10.0 | -5.0 | 0 | 5.0 | 10.0 | 15.0 | |||
| 30.0 | 6.878 | 9.130 | 11.86 | 15.13 | 19.01 | 23.57 | 28.86 | 34.95 | 41.91 | |||
| 35.0 | 5.891 | 8.056 | 10.67 | 13.80 | 17.52 | 21.87 | 26.94 | 32.79 | 39.47 | |||
| 40.0 | 5.010 | 7.070 | 9.556 | 12.53 | 16.06 | 20.20 | 25.03 | 30.61 | 36.99 | |||
| 45.0 | 4.253 | 6.192 | 8.530 | 11.33 | 14.66 | 18.57 | 23.14 | 28.43 | 34.51 | |||
| 50.0 | 5.439 | 7.613 | 10.22 | 13.33 | 17.00 | 21.30 | 26.29 | 32.03 | ||||
| 55.0 | 6.821 | 9.222 | 12.09 | 15.50 | 19.51 | 24.18 | 29.58 | |||||
| 60.0 | 8.348 | 10. 97 | 14.10 | 17.80 | 22.13 | 27.16 | ||||||
| 65.0 | 9.968 | 12.80 | 16.18 | 20.16 | 24.80 | |||||||
| MT100-4.パワー消費量[kW] | ||||||||||||
| Tc/Te | -25.0 | -20.0 | -15.0 | -10.0 | -5.0 | 0 | 5.0 | 10.0 | 15.0 | |||
| 30.0 | 3.902 | 4.394 | 4.840 | 5.218 | 5.503 | 5.674 | 5.705 | 5.575 | 5.259 | |||
| 35.0 | 3.973 | 4.494 | 4.980 | 5.407 | 5.750 | 5.988 | 6.097 | 6.053 | 5.833 | |||
| 40.0 | 4.026 | 4.584 | 5.116 | 5.597 | 6.006 | 6.318 | 6.510 | 6.559 | 6.442 | |||
| 45.0 | 4.061 | 4.662 | 5.246 | 5.789 | 6.269 | 6.662 | 6.944 | 7.093 | 7.084 | |||
| 50.0 | 4.727 | 5.370 | 5.982 | 6.539 | 7.019 | 7.398 | 7.652 | 7.759 | ||||
| 55.0 | 5.488 | 6.174 | 6.816 | 7.389 | 7.871 | 8.238 | 8.466 | |||||
| 60.0 | 6.366 | 7.098 | 7.771 | 8.362 | 8.848 | 9.205 | ||||||
| 65.0 | 7.385 | 8.164 | 8.871 | 9.482 | 9.974 | |||||||
| MT100-4.熱容量[kW] | ||||||||||||
| Tc/Te | -25.0 | -20.0 | -15.0 | -10.0 | -5.0 | 0 | 5.0 | 10.0 | 15.0 | |||
| 30.0 | 10.78 | 13.52 | 16.70 | 20.35 | 24.52 | 29.24 | 34.56 | 40.53 | 47.17 | |||
| 35.0 | 9.863 | 12.55 | 15.65 | 19.21 | 23.27 | 27.86 | 33.04 | 38.84 | 45.30 | |||
| 40.0 | 9.036 | 11.65 | 14.67 | 18.13 | 22.06 | 26.52 | 31.54 | 37.17 | 43.44 | |||
| 45.0 | 8.314 | 10.85 | 13.78 | 17.12 | 20.93 | 25.23 | 30.09 | 35.53 | 41.59 | |||
| 50.0 | 10.17 | 12. 98 | 16.20 | 19.87 | 24.02 | 28.69 | 33.94 | 39.79 | ||||
| 55.0 | 12.31 | 15.40 | 18. 91 | 22.89 | 27.38 | 32.42 | 38.04 | |||||
| 60.0 | 14.71 | 18.07 | 21.87 | 26.16 | 30.98 | 36.37 | ||||||
| 65.0 | 17.35 | 20.97 | 25.05 | 29.64 | 34.78 | |||||||
| MT100-4.現在[A] | ||||||||||||
| Tc/Te | -25.0 | -20.0 | -15.0 | -10.0 | -5.0 | 0 | 5.0 | 10.0 | 15.0 | |||
| 30.0 | 9.909 | 10.35 | 10.79 | 11.19 | 11.51 | 11.71 | 11.74 | 11.58 | 11.18 | |||
| 35.0 | 9.986 | 10.45 | 10. 93 | 11.39 | 11.78 | 12.06 | 12.19 | 12.14 | 11.86 | |||
| 40.0 | 10.04 | 10.54 | 11.08 | 11.60 | 12.07 | 12.44 | 12.69 | 12.76 | 12.62 | |||
| 45.0 | 10.06 | 10.62 | 11.22 | 11.82 | 12.38 | 12.86 | 13.22 | 13.43 | 13.44 | |||
| 50.0 | 10.68 | 11.36 | 12.05 | 12.71 | 13.31 | 13.81 | 14.16 | 14.33 | ||||
| 55.0 | 11.50 | 12.29 | 13.07 | 13.80 | 14.44 | 14.95 | 15.29 | |||||
| 60.0 | 12.53 | 13.44 | 14.31 | 15.11 | 15.79 | 16.31 | ||||||
| 65.0 | 13.83 | 14.86 | 15.82 | 16.68 | 17.40 | |||||||
| MT100-4.警察官[W/W] | |||||||||||
| Tc/Te | -25.0 | -20.0 | -15.0 | -10.0 | -5.0 | 0 | 5.0 | 10.0 | 15.0 | ||
| 30.0 | 1.76 | 2.08 | 2.45 | 2.90 | 3.46 | 4.15 | 5.06 | 6.27 | 7.97 | ||
| 35.0 | 1.48 | 1.79 | 2.14 | 2.55 | 3.05 | 3.65 | 4.42 | 5.42 | 6.77 | ||
| 40.0 | 1.24 | 1.54 | 1.87 | 2.24 | 2.67 | 3.20 | 3.85 | 4.67 | 5.74 | ||
| 45.0 | 1.05 | 1.33 | 1.63 | 1.96 | 2.34 | 2.79 | 3.33 | 4.01 | 4.87 | ||
| 50.0 | 1.15 | 1.42 | 1.71 | 2.04 | 2.42 | 2.88 | 3.44 | 4.13 | |||
| 55.0 | 1.24 | 1.49 | 1.77 | 2.10 | 2.48 | 2.94 | 3.49 | ||||
| 60.0 | 1.31 | 1.54 | 1.81 | 2.13 | 2.50 | 2.95 | |||||
| 65.0 | 1.35 | 1.57 | 1.82 | 2.13 | 2.49 | ||||||
| MT100-4.マス フロー[kg/h] | ||||||||||||
| Tc/Te | -25.0 | -20.0 | -15.0 | -10.0 | -5.0 | 0 | 5.0 | 10.0 | 15.0 | |||
| 30.0 | 149.8 | 196.1 | 251.4 | 316.7 | 393.1 | 481.5 | 583.0 | 698.6 | 829.2 | |||
| 35.0 | 133.5 | 179.9 | 235.1 | 300.1 | 376.0 | 463.9 | 564.7 | 679.6 | 809.5 | |||
| 40.0 | 118.4 | 164.6 | 219.3 | 283.6 | 358.7 | 445.6 | 545.4 | 659.3 | 788.2 | |||
| 45.0 | 105.1 | 150.7 | 204.5 | 267.7 | 341.6 | 427.1 | 525.6 | 638.0 | 765.5 | |||
| 50.0 | 138.8 | 191.2 | 252.9 | 325.0 | 408.8 | 505.4 | 616.0 | 741.8 | ||||
| 55.0 | 180.1 | 239.7 | 309.6 | 391.2 | 485.5 | 593.8 | 717.3 | |||||
| 60.0 | 229.0 | 296.1 | 374.7 | 466.2 | 571.7 | 692.6 | ||||||
| 65.0 | 285.1 | 360.2 | 448.2 | 550.4 | 668.0 | |||||||
Te =蒸発の温度[°C]
Tc =凝縮の温度[°C]
