SC21CL 1HP R404A Refrigerant Freezer Compressor 220-240V/50Hz for Cold Storage

1HP Freezer Compressor

R404A Refrigerant Freezer Compressor

220-240V/50Hz Freezer Compressor

起源の場所:

ティアンジン,中国

ブランド名:

famous

お問い合わせ

引金を求めてください

SC21CL 1HP R404A Refrigerant Freezer Compressor 220-240V/50Hz for Cold Storage

製品詳細

重量(KG):

ビデオ出検:

提供された

機械試験報告書:

提供された

タイプ:

冷凍用コンプレッサー

応用:

冷凍部品

保証:

1年

タイプ:

小さい圧縮機

製品名:

フリーザーコンプレッサー

モデル:

SC21CL

冷媒:

R404A

保証:

1 年間の保証

電圧:

220-240V/50Hz

馬力:

1HP

パッキング:

木製ケース

MOQ:

1個

説明:

ミニ冷蔵庫圧縮機

ハイライト:

1HP Freezer Compressor

R404A Refrigerant Freezer Compressor

220-240V/50Hz Freezer Compressor

支払いと配送条件

最小注文数量

価格

CN¥1,025.99-1,231.19

Carlyle 06E35656A0 06E75656A0 Piston Compressor 400v 3ph 50hz R404A Single-temperature Refrigeration Compressor

最もよい価格を得なさい

Carlyle Brand 3HP Oil-less Piston Refrigeration Compressor 400V 3PH 50Hz for Cold Storage

最もよい価格を得なさい

06ER4756A0 Brand New Carlyle Reciprocating Semi-Hermetic Compressor with R404A Refrigerant 400V 3PH 50Hz and 1 Year Warranty

最もよい価格を得なさい

2HP to 50HP R404A Refrigerant Customizable Cold Storage Compressor Semi-hermetic Piston Compressor

最もよい価格を得なさい

お問い合わせ

今連絡してください

製品説明

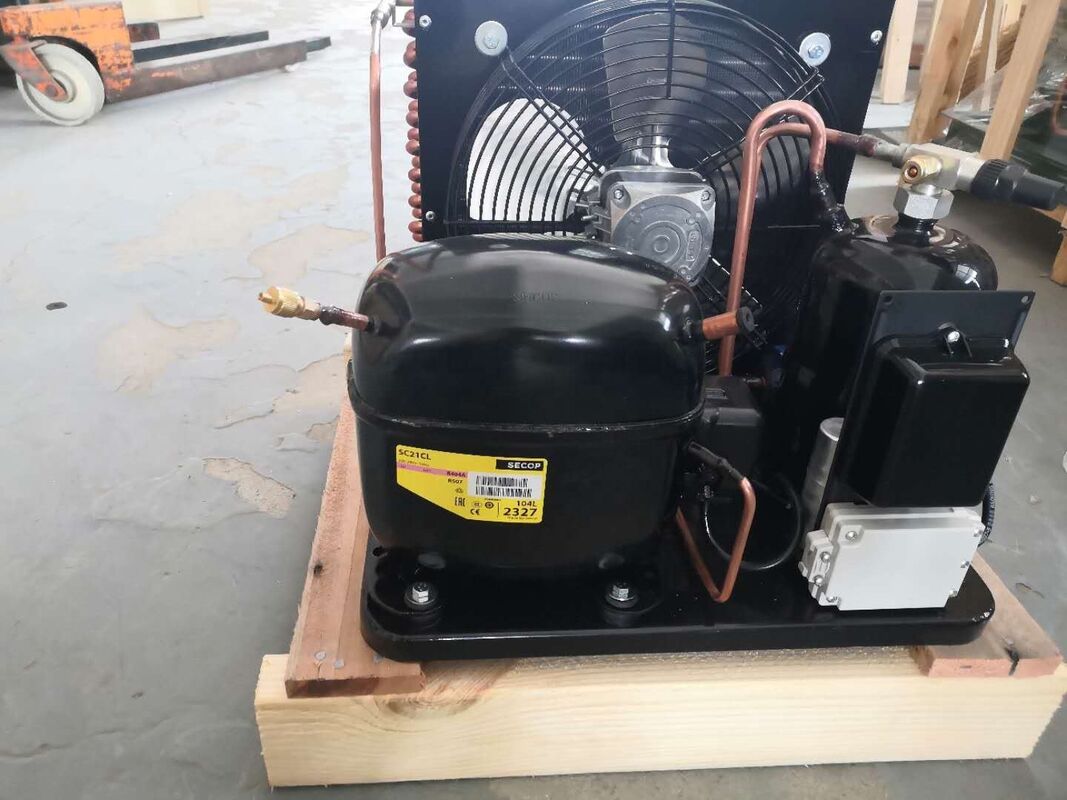

SC21CL 104L2327 Refrigeration Compressor

Professional 1HP compressor designed for refrigerator applications, manufactured in China with 220-240V/50Hz operation and R404A refrigerant compatibility.

Key Specifications

Model	SC21CL	Refrigerant	R404A
Voltage	220-240V	Minimum Order	1 unit
Product Type	Small Compressor	Origin	China
Power	1HP	Application	Refrigerator

Technical Specifications

Compressor Design

Oil Type: Polyolester
Refrigerants: R404A, R507
Oil Viscosity: 32.5cSt
Displacement: 20.95cm³
Oil Quantity: 599cm³

Electrical Properties

Winding Resistance Main: 3.4Ω (at 25°C)
Winding Resistance Aux: 14.4Ω (at 25°C)
Max Winding Temp: 125°C / 257°F
Max Discharge Temp: 135°C / 275°F
Motor Protection: Internal

Configuration Details

Motor Configuration: CSCR
Power Supply: 220-240V/50Hz
Number of Phases: 1
Voltage Range: 198-254V
Approvals: VDE, CCC, EAC

Electrical Data

Starting Device Type	Relay
Run Capacitor	10µF
Start Capacitor	80µF
LRA (Locked Rotor Amps)	23.4A
RLA (Rated Load Amps)	4.3A
Cut In Current	23.4A
IP Class	21

Application Information

This compressor is optimized for low back pressure applications with system cooling fan operation at 3m/s. Suitable for hot gas defrost systems and long interval pull down operations.

Product Images

Frequently Asked Questions

Q1: Are you a manufacturer or trading company?

We are authorized agents for this compressor, and we operate factories that produce condensing units, chillers, and evaporators.

Q2: What about the shipping methods?

We offer multiple shipping options including express delivery, air freight, and sea freight.

Q3: What about the payment methods & payment terms?

We accept T/T, PayPal, Western Union, and cash. Standard terms are 30% deposit with 70% balance payment before shipment.

Q4: What's your delivery time? Where is the loading port?

Delivery typically takes 35-60 days after payment confirmation. Loading port is Shanghai, with other Chinese ports available upon request.

Q5: Can I have a sample first?

Samples are available with payment of sample cost.

Q6: How do you ship the goods and how long does it take to arrive?

We ship via LCL or FCL by sea, air, or express delivery. Sea freight takes approximately 30 days, while air/express takes 5-7 days.

Packaging & Shipping

Customization & Service

We serve various industries including refrigeration, cold storage engineering, agriculture, food service, restaurant, and chemical sectors. Custom designs are available according to specific customer requirements.

Warranty & Support

KUB provides up to one year warranty coverage. We take full responsibility for any product quality issues and provide excellent after-sales service to ensure complete customer satisfaction.
